Aluminum Radiator For 1988-1999 1992 1993 1994 Chevy C1500 C2500 C3500 K1500 K2500 K3500 GMC Suburban 5.0 5.7L V8 89 90 91 92 93 94 95 96 97 98 3 Row Radiators
Product details
| Management number | 225474267 | Release Date | 2026/05/09 | List Price | US$121.20 | Model Number | 225474267 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

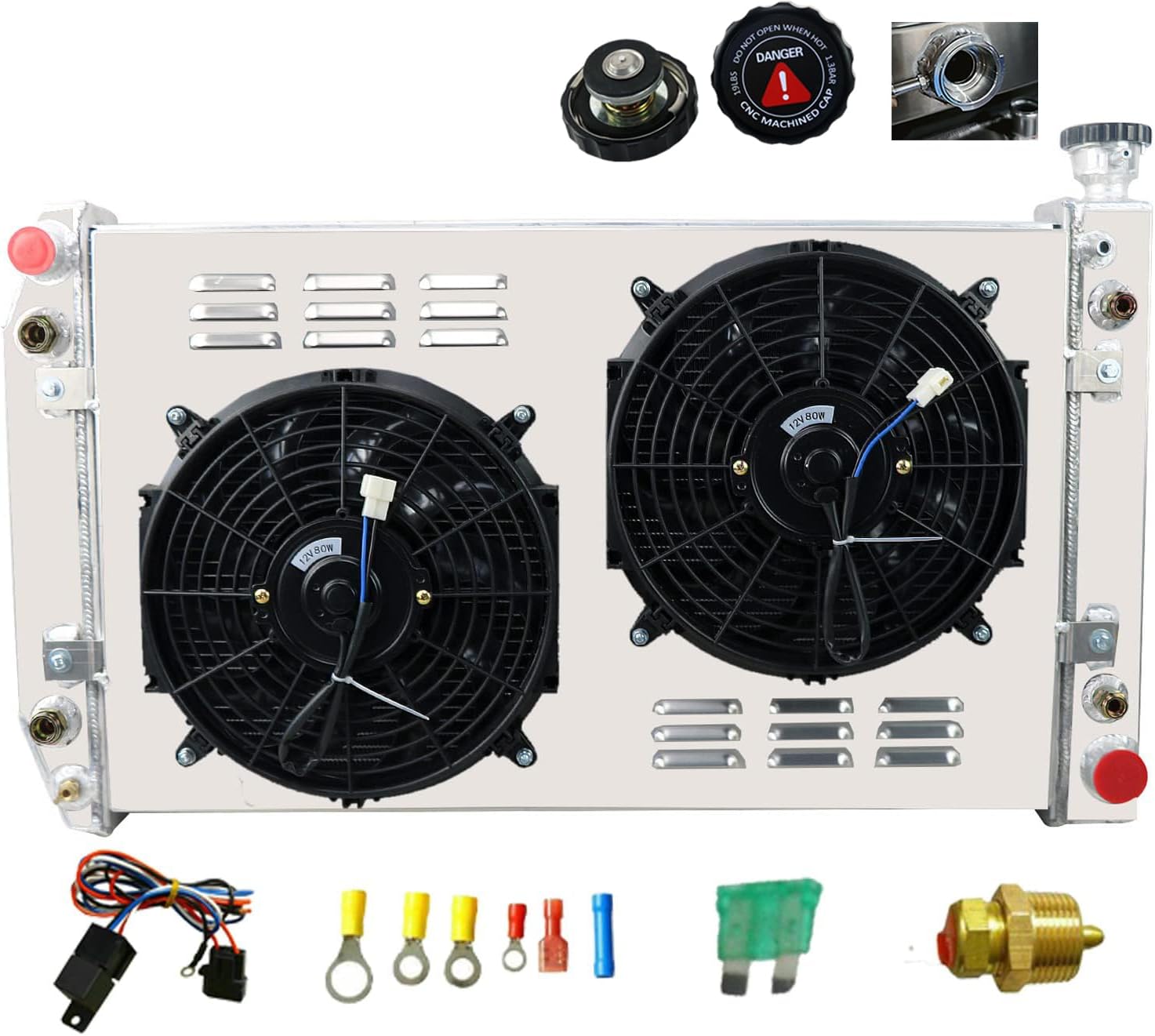

Fitment: 1996-1997 Chevy P30 / GMC P3500 4.3L V6 1992-1995 Chevy/GMC Suburban 5.7L V8 1988-1995 Chevy/GMC C/K Pick Up 5.0 / 5.7L V8 1994-1995 Chevy/GMC C/K Pick Up 4.3L V6 1989-1991 Chevy R/V Series 5.7L V8 1994 Chevy Blazer - Full Size 5.7L V8 Pakage Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Radiator Details: 3-Row of tubes Core Racing Design Material: Full Aluminum ,T-5057 Aircraft Grade Aluminum Features: 100% Leak Tested,Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation Placement on Vehicle: Engine Compartment, front Crafts : 100% TIG welded Fitment Type: Performance/Custom Mounting Style: Bolt-On Delivery: Local Delivery Manufacturer Part Number: 622 CU622 KKS622 SBR622 CC622 TYC622 DPI622; RAD622 AE622 EC622 SPTCU622 RA622 RK622 SC622 TYC622 1804, 2383; 52467208, 52467210, 52469431, 52469432, 52469466, 52491623, 622

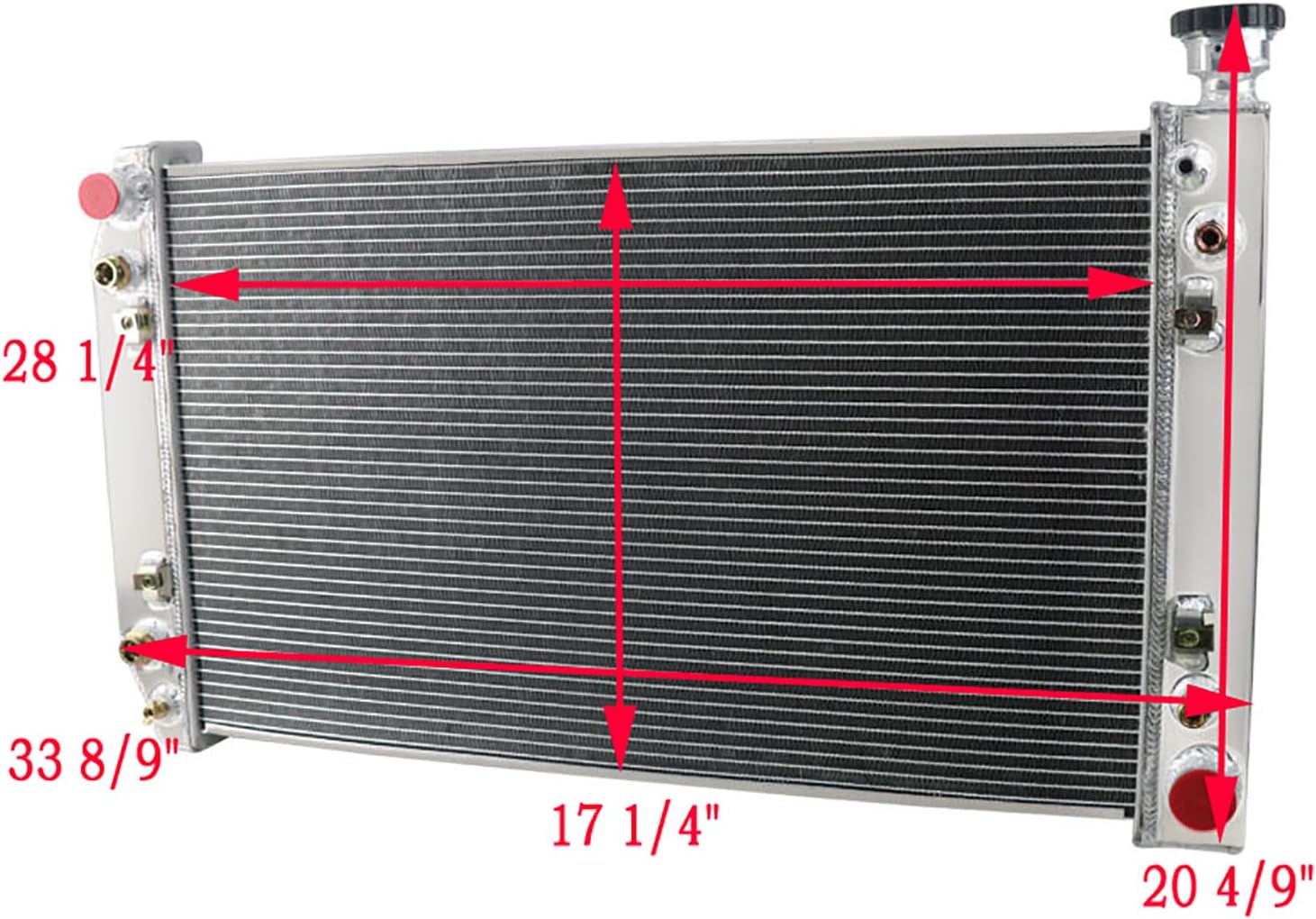

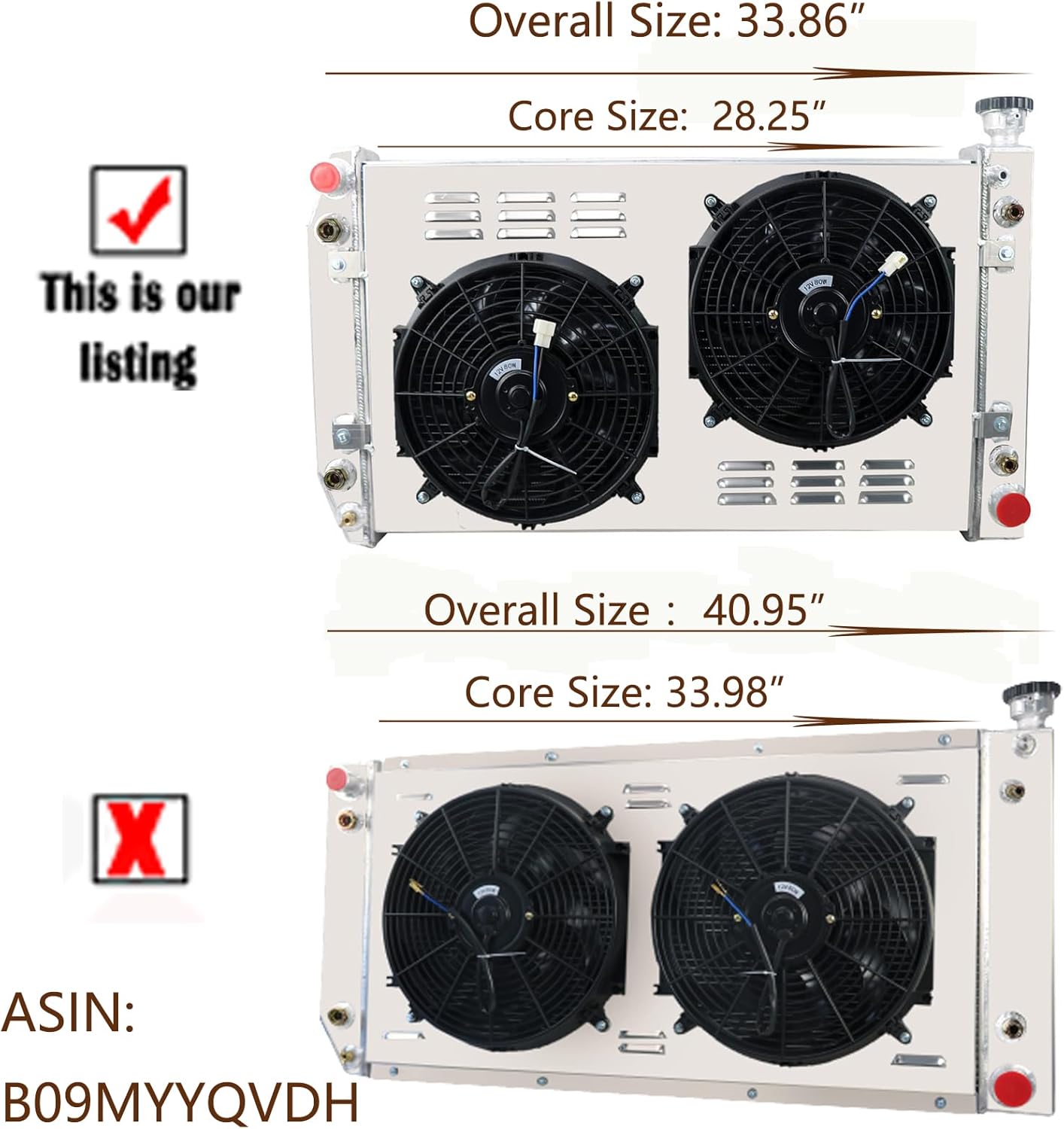

- Core Size : 28.27" H x 17.24" W x 1.73" T; Overall Size : 33.86" H x 20.47" W x 5.51" T ; Inlet/Outlet: 1.26"/1.57" ; Upper Hose Fitting: Driver ; Lower Hose Fitting: Passenger
- Transmisson Oil Cooler ：φ26*292*1/2-20UNF(Z) ; Engine Oil Cooler : φ32*292*M20*1.5(P) ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
- Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant ；One-year warranty. For any issues, please feel free to contact us anytime, and we will resolve them for you.
- Brazed core technology to guarantee optimum performance and dependability ; Carefully crafted to exceptional OE standards for precise fit.Features: 100% Leak Tested, Durability Tested, No Drilling or Modifications Needed for Installation ; One-year warranty. For any issues, please contact us immediately. Enignelooc will resolve the matter for you.
- Fitment: For Chevy P30 / GMC P3500 4.3L V6 1996-1997 ; For Chevy/GMC Suburban 5.7L V8 1992-1995 ; For Chevy/GMC C/K Pick Up 5.0 / 5.7L V8 1988-1995 ; For Chevy/GMC C/K Pick Up 4.3L V6 1994-1995 ; For Chevy R/V Series 5.7L V8 1989-1991 ; For Chevy Blazer - Full Size 5.7L V8 1994
| UPC | 753684773141 |
|---|---|
| ASIN | B09MQJ6XFH |
| Model | CU622 |
| Wattage | 304.8 watts |
| Brand Name | RadRace |
| Unit Count | 1.0 Count |
| Part Number | MotorPartsZone534 |
| Manufacturer | MotorPartsZone |
| Material Type | Aluminum |
| Cooling Method | forced air |
| Air Flow Capacity | 2300 Cubic Feet Per Minute |
| Compatible Devices | Radiator |
| Power Connector Type | 3-Pin |
| Warranty Description | 1 year warranty |
| Maximum Rotational Speed | 2250 RPM |
| Item Dimensions L x W x H | 20.47"L x 17.24"W x 33.86"H |
