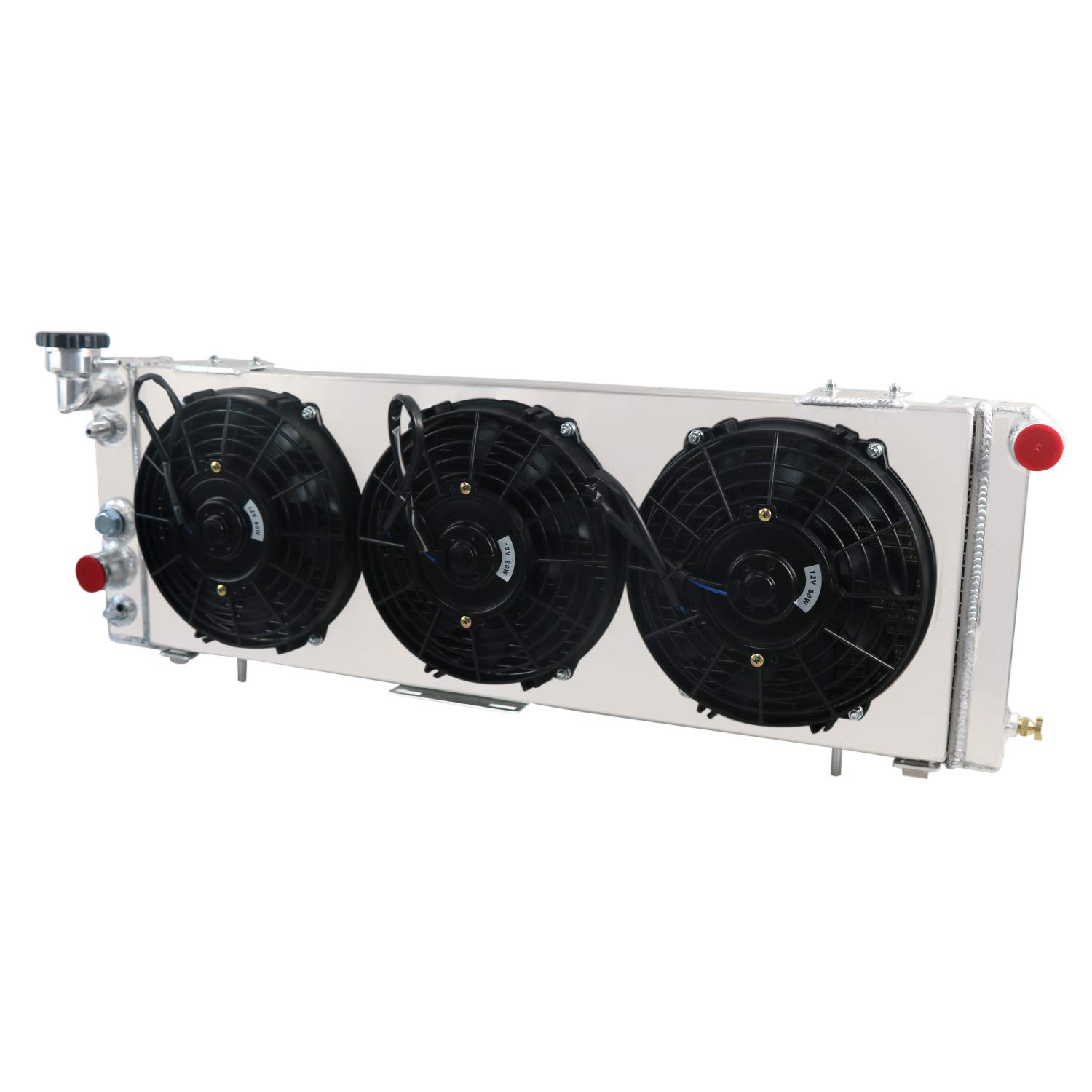

4 Row Aluminum Radiator Shroud Fan Relay For 1991-2001 Jeep Cherokee XJ Comanche Wagoneer 2.5L L4 4.0L L6 AT MT 92 93 94 95 96 97 98 99 01 Radiators
Product details
| Management number | 219817273 | Release Date | 2026/05/03 | List Price | US$155.60 | Model Number | 219817273 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Fitment: For Jeep Cherokee l6 1991-2001 For Jeep Cherokee SE Sport l4 1995-2000 For Jeep Comanche 4.0L l6 1991-1992 For Jeep 91-01 Cherokee 2.5L 4.0L 91-92 Comanche 4.0L For Jeep Cherokee XJ 6 Cylinder 1991-96 97-2001 For Jeep Cherokee Comanche l4 l6 2.5 4.0 6 Cylinder 1991-2001 (Fits Automatic and Manual Transmission Models with 2.5L 150Cu In. l4 or 4.0L 242Cu In. l6 OHV Engines ONLY)Please be Sure to Check Compatibility Chart Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 3 X 9" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN DETAILS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 9.75" Fan Height (in): 9.75" Thickness (in): 2.25" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: Material : all aluminum 4 Rows Core Radiator Flow: CROSS FLOW Upper Hose Fitting: PASS Lower Hose Fitting: DRIVER Trans Cooler Details: 5/8-18 Straight Thread Mounting Type: PIN MOUNT Part Number: 1605-291885 2AMR1193AA,RA 1193C 52079693AD 52079682AF, 1193,3251,8011193,2671,2670,432335, SBR1193,CC1193,CU1193,DPI1193,78,CC78,CU78,DPI78 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
- Core Size : 30.91" H x 11" W x 2.44" T; Overall Size : 36.11" H x 13.27" W x 6.92" T; All Aluminum Radiator: Inlet/Outlet: 1.5"/1.26"
- Transmission Oil Cooler:φ32*190*5/8-18UNF(Z);Transmission Oil Cooler Fitting Type: 5/8-18 Straight Thread, Inverted Flare
- 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation
- High-quality material: Transmission Oil Cooler is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the Transmission Oil Cooler is welded in vacuum brazing furnace, no epoxy.
- Fitment: For Jeep Cherokee l6 1991-2001 ; For Jeep Cherokee SE Sport l4 1995-2000 ; For Jeep Comanche 4.0L l6 1991-1992 ; For Jeep 91-01 Cherokee 2.5L 4.0L 91-92 Comanche 4.0L ; For Jeep Cherokee XJ 6 Cylinder 1991-96 97-2001 ; For Jeep Cherokee Comanche l4 l6 2.5 4.0 6 Cylinder 1991-2001 ; (Fits Automatic and Manual Transmission Models with 2.5L 150Cu In. l4 or 4.0L 242Cu In. l6 OHV Engines ONLY)Please be Sure to Check Compatibility Chart
| UPC | 753684772991 |
|---|---|
| Model | Radiator Shroud Fan Relay For Jeep |
| Wattage | 152 watts |
| Brand Name | RadRace |
| Part Number | MotorPartsZone519 |
| Contact Type | Normally Open |
| Manufacturer | MotorPartsZone |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Operating Time | 3 Minutes |
| Operation Mode | Automatic |
| Maximum Switching Current | 12.7 Amps |
